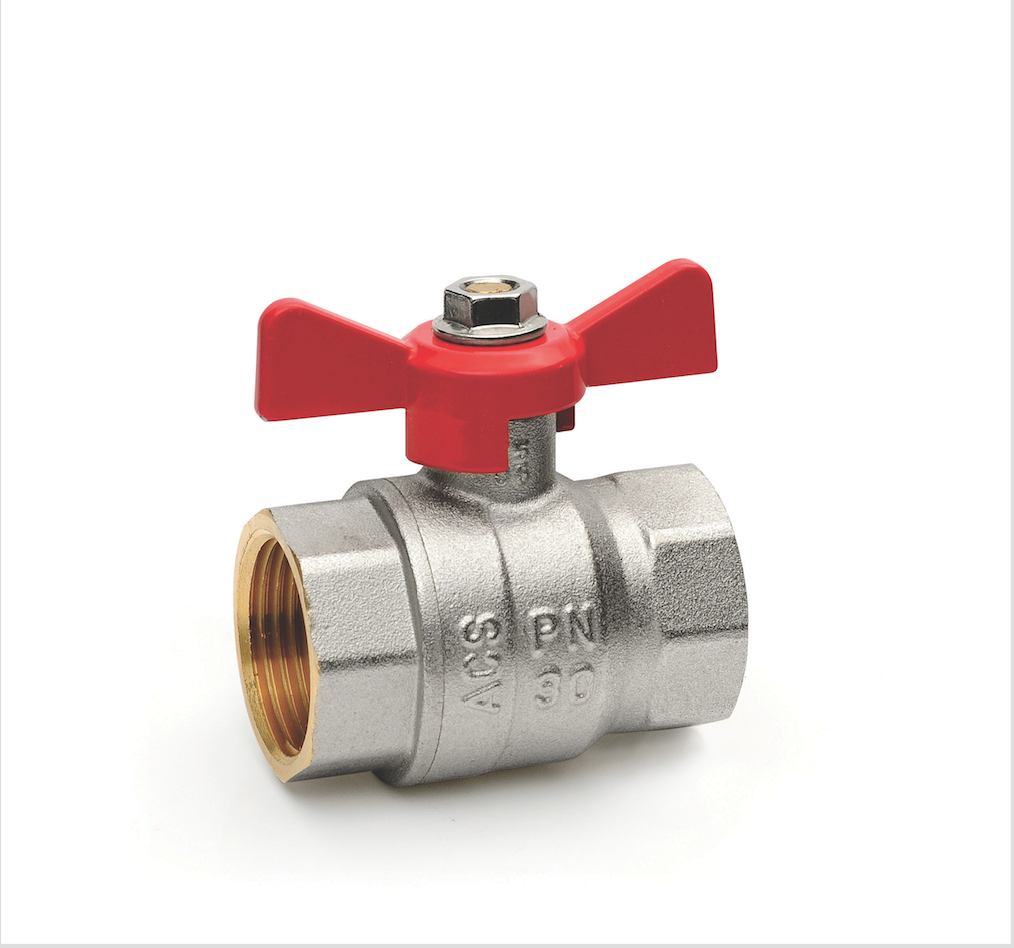

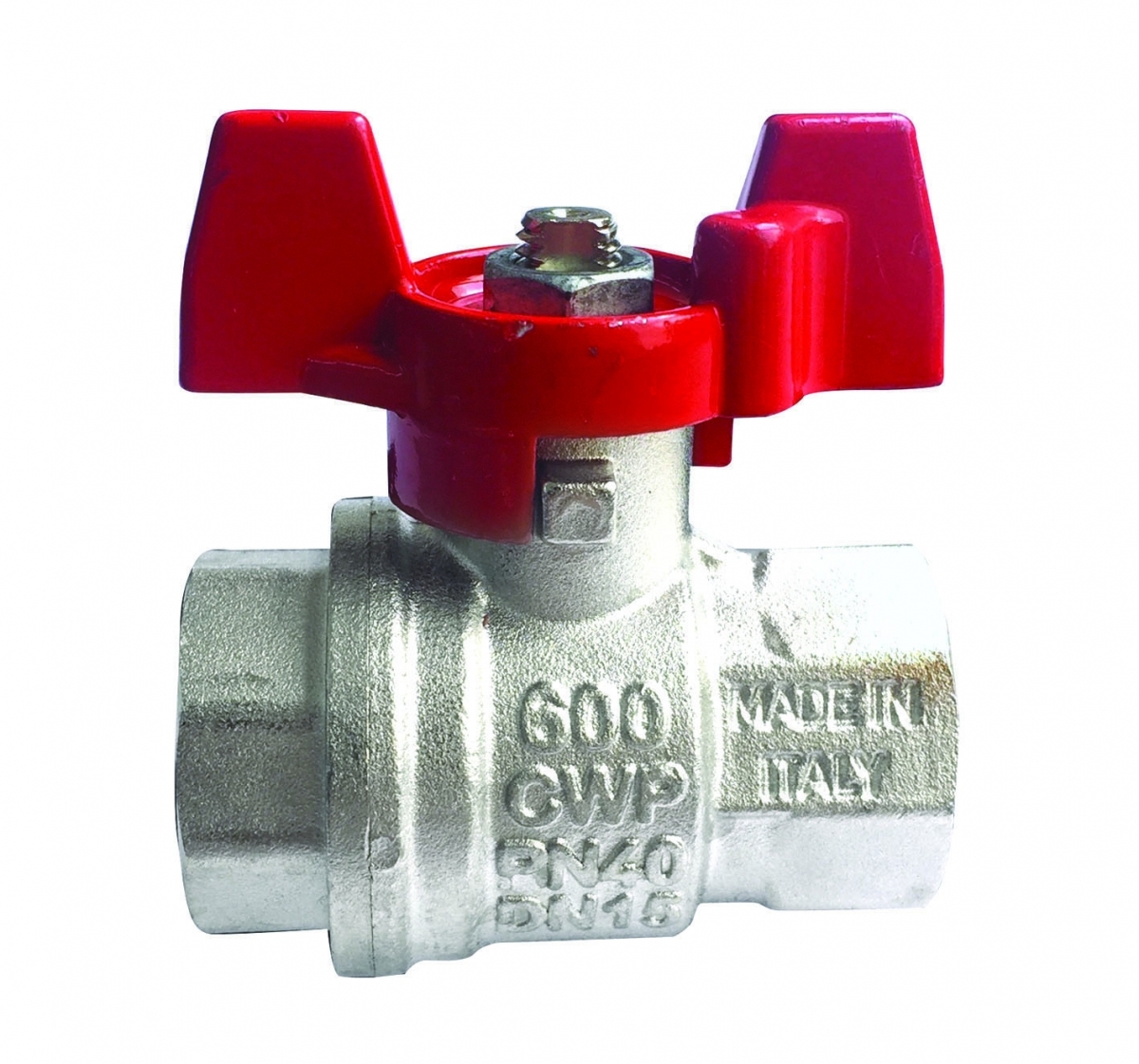

BUTTERFLY BALL VALVES

A.P.M. Batterfly Ball Valves

  • Made of forged brass, sand-blasted and nickel plated.
  • Brass stem with stuffing box assembled from inside to avoid tampering, extraction or explosion, according to UNI 8858.
  • Brass solid ball with cleaned and chromium plated surface.
  • PTFE seats in accordance with EN 331, designed with a 7° tightness angle.
  • Red aluminium butterfly handle
  • Threads Female by Female / Male by Female / Male by Male according to ISO 228/1.
  • PN 30
  • Sizes: 1/4" - 1" (F/F & M/F), 3/8" - 1" (M/M)
  • Antilegionella.
  • Made in Italy.
