BALL VALVES

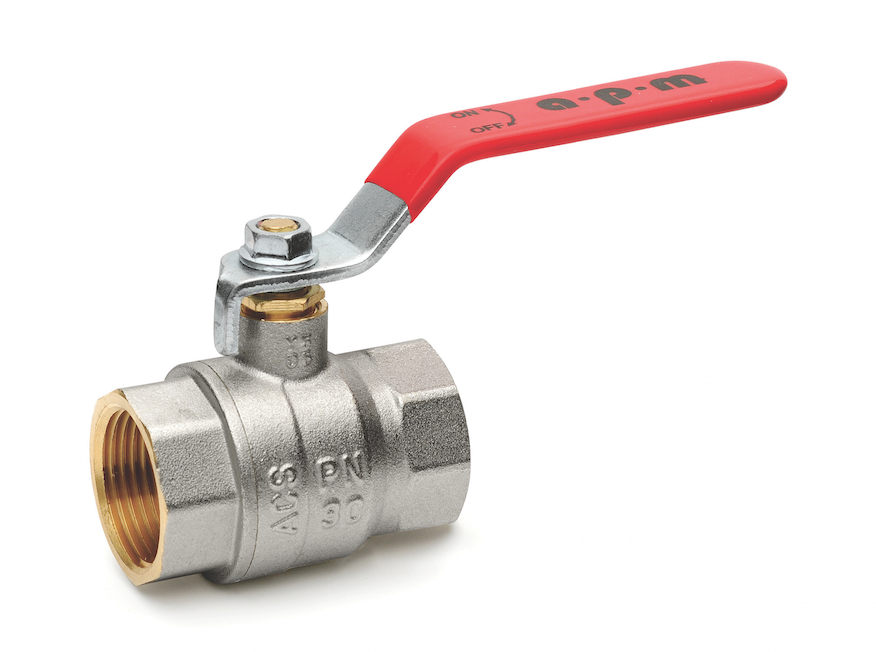

A.P.M. Full way ball valve

• Made of forged brass, sand-blasted and nickel plated.
• Brass stem with stuffing box assembled from inside to avoid tampering, extraction or explosion, according to UNI 8858.
• Brass solid ball with cleaned and chromium plated surface.
• PTFE seats in accordance with EN 331, designed with a 7° tightness angle.
• Lever made of aluminium [ T series ] or made of steel with PVC coating [ ST series ].
• Threads Female by Female and Male by Female according to ISO 228/1.
• 1/2" - 2" PN 30 | 2 1/2" PN 25 | 3" - 4" PN 16
• Sizes: 1/2" - 4"
• Antilegionella.
• Made in Italy.

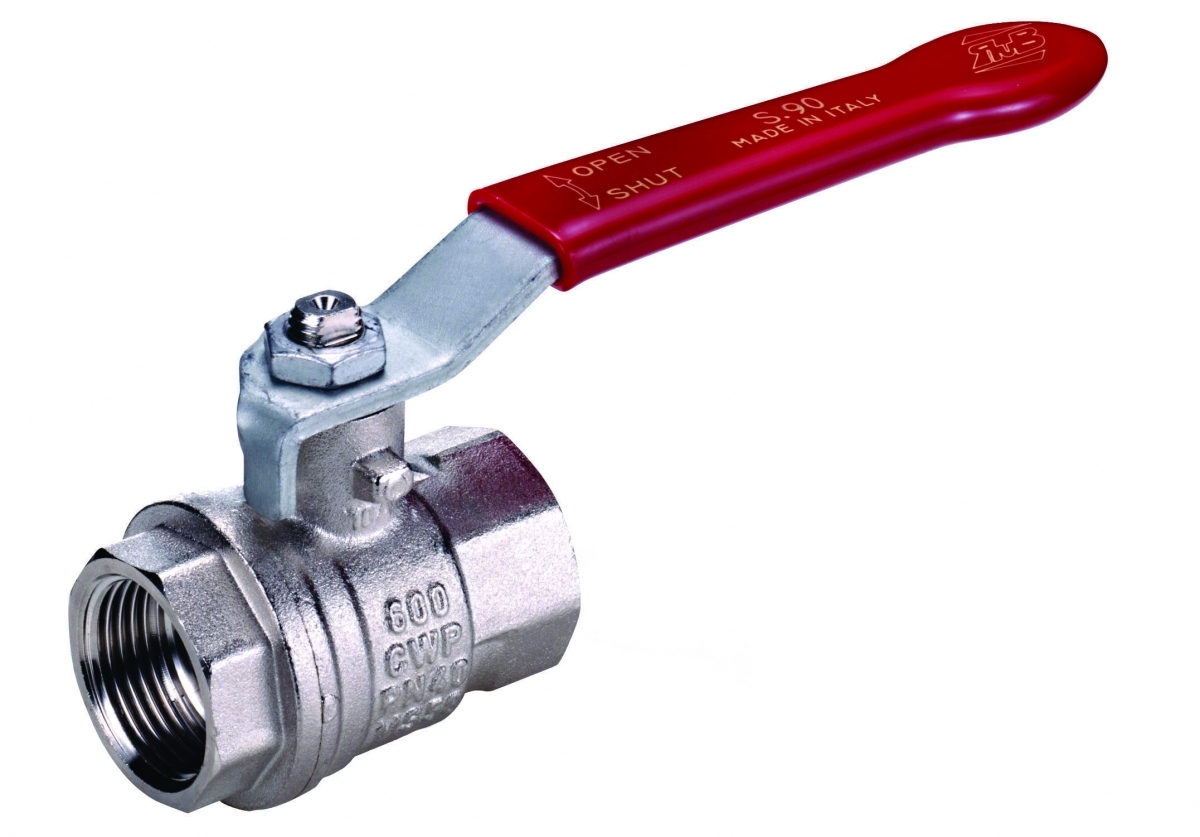

R.U.B. High-Pressure Full way ball valve

• Hot forged full port sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant.
• Chrome plated brass ball for longer life.
• NPT short taper Female by Female and Male by Female threads.
• Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection.
• PN 40 / non-shock cold working pressure.
• 24h 100% seal test guaranteed.
• No maintenance ever required.
• Sizes: 1/2" - 4"
• Made in Italy.
